網格式真空吸盤

Grid type vacuum chucks
崁入式.網格式


產品詳敘

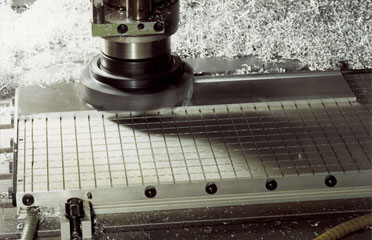

崁入式(網格式)真空夾盤

主要應用於簡單幾合樣式的工件,作研磨與銑削用途。 合成封膠條,能把不平坦的表面做緊密密封夾持。 本體可選擇12.5mm或25mm的崁格, 有鋁合金或鋼質的本體, 自150x100x38mm-1000x500x48mm的規格。 更大可接受訂製。




Grid type vacuum chucks

Applications

For simple shaped workpieces with a rough surface and heavy duty milling

  • Grinding
  • Milling
  • Turning

Advantages

  • Strong hold down surface
  • Universally applicable
  • Secure clamping of rough workpieces due to high friction properties
  • The o-shaped seal evens out any irregularities between workpiece and chuck surface

Handling

  • Any shape or size of chuck made to measure
  • Recommended grid size depends on workpiece contour and dimensions
  • Clamping area defined by polymer o-shaped seal
  • Fine vacuum grid plates for extremely small workpieces in any form
  • Acts as a base for many special solutions in connection with special vacuum adapter mats
