產品詳敘
ECOROLL EG5T型滾光刀具
高性價比工具，可滾壓滾光特定尺寸的任意直線或旋轉對稱面。
產品特性:
- 可用于CNC或普通車床。
- 也適合於長床身車床。
- 表面品質可達Rz < 1 μm / Ra ≤ 0.2 μm。
- 可加工抗拉強度≤ 1400N/mm2，洛氏硬度HRC ≤ 45的金屬材料。
優點：
- 多功能，結構緊湊，物美價廉。
- 加工週期短。
- 一次裝夾即可完成加工，無轉換和輔助加工時間。

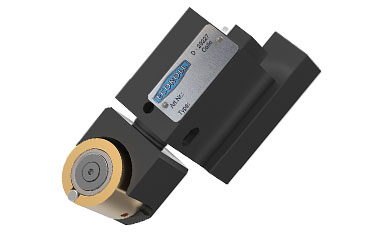

Type EG5T
Cost-effective roller burnishing of any linear, rotationally symmetric surfaces of specifi ed dimensions
Features:
- For use on CNC-controlled or conventional lathes.
- Also suitable for use on long bed lathes.
- Can achieve a surface quality of Rz < 1 μm / Ra ≤ 0.2 μm).
- Machines all metal materials up to a tensile strength of 1400 N/mm2 and a maximum hardness of HRC ≤ 45.
Advantages:
- Versatile, compact, inexpensive.
- Short cycle time.
- Complete processing in one setting; changeover and auxiliary process time eliminated.

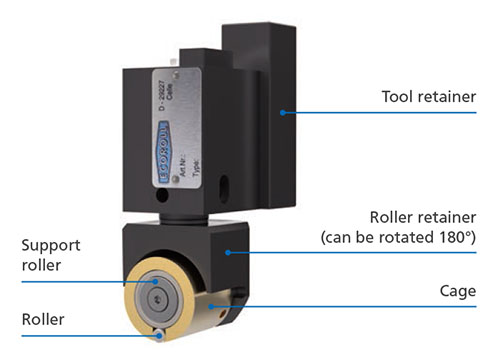

Design:
