產品詳敘

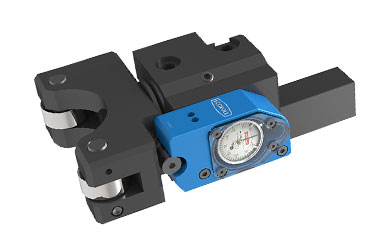

ECOROLL MZG型滾光刀具
加工圓柱面
RH:加工內圓弧角RHA:加工外圓弧角
產品特性:
- 雙滾輪滾光工具。
- 專門設計用於下壓式加工。
- 滾輪壓力角< 180°。無需調整滾輪間隙。通過工具X向位置調整滾壓力。
- 主要應用領域:軸封密封面的滾光 (MZG01)。
優點:
- 加工表面無螺旋線紋路。
- 切削加工完成後直接滾壓加工。
- 下壓式加工,加工週期非常短。
- 加工已加工面時,單次加工可達表面粗糙度Rz < 1 μm。
設計:
- 滾輪保持架。
- 刀體包含刀柄和盤簧。
- 指示器檢測滾輪保持架的軸向移動。
Type MZG
Machining cylindrical surfaces
Features:
- Roller burnishing tools with two rollers.
- Specially designed for roller burnishing in a plunge-in process.
- Roller pressure angle < 180°. No adjustment to roller clearance necessary. The burnishing force is controlled by tool positioning in X.
- Primary application area: Roller burnishing sealing surfaces for shaft seals (MZG01).
Advantages:
- Finished surfaces without twisting marks.
- Complete processing in one setting following the cutting process.
- Plunge-in process results in extremely short work cycle.
- Starting with a fi nished surface, a surface roughness of < 1 μm can be achieved in one pass.
Design:
- Roller retainer.
- Tool retainer with clamping shank and disc springs.
- The axial motion of the roller retainer is directly transferred to the dial gauge.
