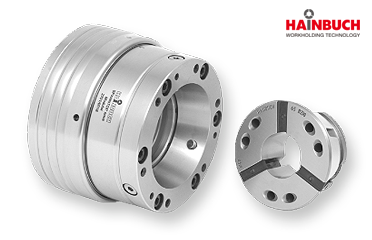

NOVA 油壓夾頭

SPANNTOP NOVA Chuck
通孔型夾頭.止動型夾頭.軸向零移位


產品詳敘

超過30年的夾持技術經驗

穩固、同心度高並可簡易換模-這些都是SPANNTOP非凡的特性。這個由HAINBUCH開發的系統不僅操作簡單,對您的加工成果更是加分。

SPANNTOP適用於多種機台,車床、綜合加工機、齒輪車削、磨床、迴轉式連續自動工作機以及摩擦焊機。簡言之,所有需要穩固、高精度且易換模夾頭的地方,HAINBUCH夾頭都適用。

可快速裝配的附件讓您的夾頭輕易地從外徑夾持轉換為內徑夾持或甚至夾頭前方夾持。不只是您事業上真正的多功能幫手,也是為你省荷包的選擇。請你來見證!



油壓夾頭

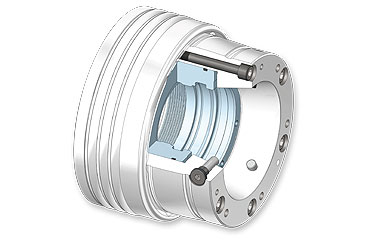

SPANNTOP通孔型夾頭:通孔設計,適用棒材與管材

  • 平行/圓筒式夾持
  • 絕佳的夾持力
  • 高堅固性
  • 磨耗性小
  • 簡單換模
  • 同心度< 0.01 mm

油壓夾頭

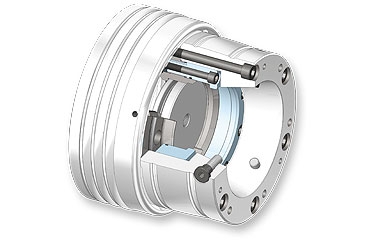

SPANNTOP止動型夾頭: 內附固定式止動器,適用塊狀素材。拆卸止動器後即為通孔,適用棒材。

  • 軸向拉力並止於止動器,確保穩固夾持(短徑夾持也適用!)
  • 慣性損失小
  • 高堅固性
  • 絕佳的夾持力
  • 換模後重覆同心度高
  • 簡單機構卻有更佳的力轉換
  • 短夾持距離工件也適用
  • 拆卸止動器後即可變為棒材用夾頭

油壓夾頭

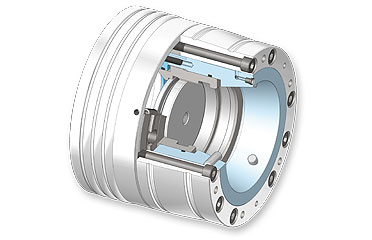

SPANNTOP軸向零移位夾頭:固定式夾固頭設計,且具有通孔與止動器之功能。

  • 徑向夾持,工件無軸向運動
  • 短軸環(short collar or shoulder)工件亦適用

影片:




The original, that wrote workholding history

SPANNTOP nova – this development represents more than 30 years of SPANNTOP experience. It exploits all the advantages of the latest machine tools. The components are not only optimized for balance, quality, and have an extended guide length. The clamping length of the workpieces is also significantly greater. This chuck is designed for maximum RPM and holding power at ideal concentricity. It is extremely rigid, precise, and has an extremely long life.

The position-oriented base end-stop of the »combi pull-back« and »combi deadlength« variants can be conveniently changed from the outside via three clamping screws countersunk in the chuck, and for standard chucks, provides excellent accuracy for face location combined with through-bore capacity.

SPANNTOP nova: reliable and solid.
The product is the result of more than 30 years of experience!

Key advantages

  • Typical HAINBUCH features, such as user friendly set-up, full passage, parallel clamping, optimal power conversion, extreme rigidity and superior holding power, as well as minimal wear and tear
  • Concentric precision < 0.01 mm possible
  • Minimal inertia loss effects
