自動偏心夾頭

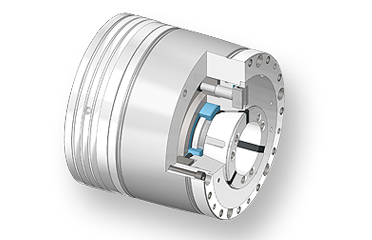

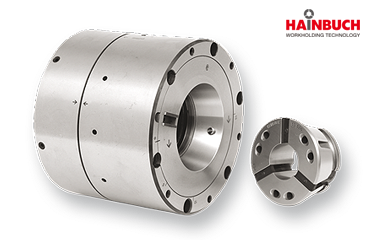

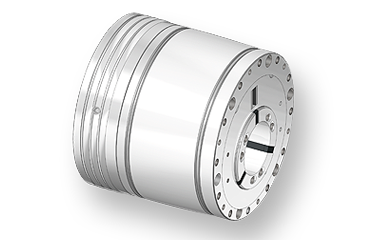

Eccentric chuck
透過C軸可調式偏心夾頭


產品詳敘

在同機台上作一個或多個偏心軸加工,可能嗎?

答案是:偏心夾頭可以簡易達成

您可以藉由旋轉偏心轂而在相同夾頭上一次設定完成,省時又省錢。轉動偏心的動作只在瞬間完成,從停止轉動,刀塔解除壓力,調整C軸到鎖固定位一次完成,立即開始車削在最短時間內,無需交換任何機械,採用標準原機油壓缸即可大功告成,是非常實用的夾持方式。

單個夾持機構的同心及偏心加工

也許自動調整式並不需要,但是固定偏心或手動偏心調整可能是不錯的選擇,而且符合您的需求。

節省時間和成本

因此,您可以節省時間和成本。從定心更換為偏心,只需幾秒鐘 – 該更換是自動的,極為方便,而這都歸功於調整C軸到鎖固定位一次完成,立即開始車削在最短時間內,無需交換任何機械。

優化安裝時間

安裝時間最短,無論如何都不需要改裝機床。首先:您可以正常使用您的油壓缸。

優勢:

  • 憑藉 C 軸的無限偏心調節
  • 單個夾持機構的同心及偏心加工
  • 不同的偏心尺寸可能配有相同的卡盤和夾頭
  • 最小慣性損失
  • 在軸向拉伸力的作用下,工件抵住止動器,從而保持穩定性

影片:




Concentric and eccentric machining in a single clamping set-up

Concentric and eccentric complete machining in a single clamping set-up? That's right! With our compact chuck you can now turn an eccentric position on the workpiece – in a single set-up without having to re-chuck it!

Time and cost saver

Thus you save time and money. Change-over from centric to eccentric takes just a few seconds – it is automatic and convenient due to the setting tool in the turret and the C-axis of the machine spindle.

Optimization of set-up times

Minimum set-up times and no machine changes whatsoever. And first and foremost: You can use your normal clamping cylinder.

Key advantages

  • Infinite eccentric adjustment via the C-axis
  • Concentric and eccentric machining in a single clamping set-up
  • Different eccentric dimensions are possible with the same chuck and clamping head
  • Minimal inertia loss
  • Workpiece stabilization through axial draw force applied against the workpiece end-stop
